Abaqus CAE -Thermal Stress Analysis of a Composite Material -Undergraduate Thesis for Mechanical Eng

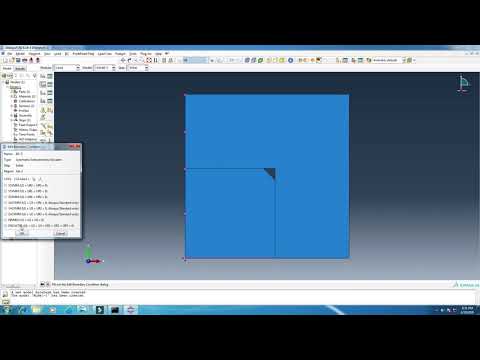

In this tutorial, Tech Hawk shows an approach to determine the effects of thermal stresses on the Aluminum (Al) matrix reinforced with SiC particles. Two dimensional unit cell models have been developed to carry out numerical analysis from 20° C to 500° C temperature by using finite element analysis (FEA) software ABAQUS 6.14. In this tutorial, the following steps are taken in Finite Element Analysis (FEA) software ABAQUS to perform the calculation. - Creating the part - Creating & assigning the material - Instancing the part - Creating steps - Applying boundary conditions - Meshing the part -Creating job and get the results
